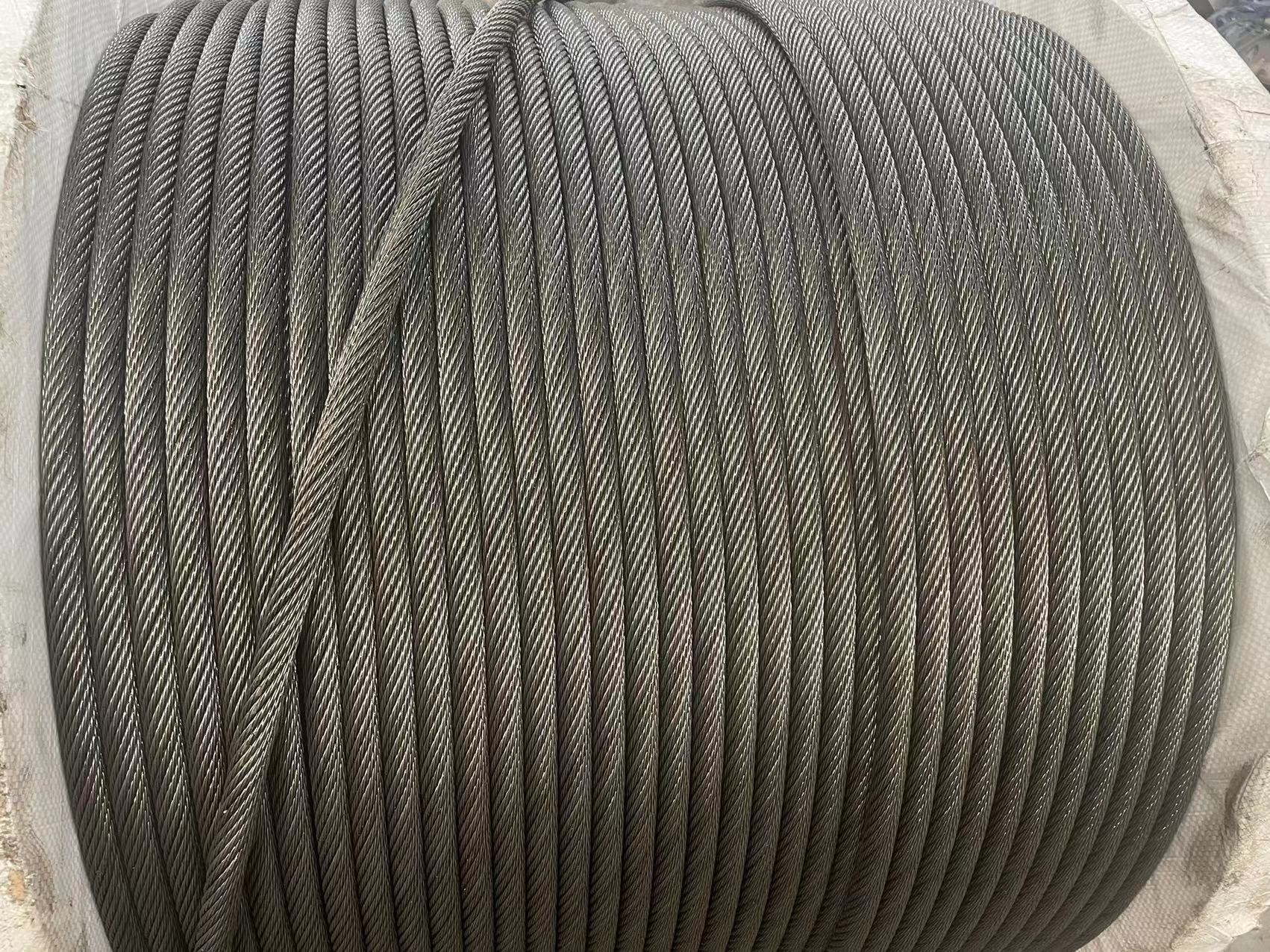

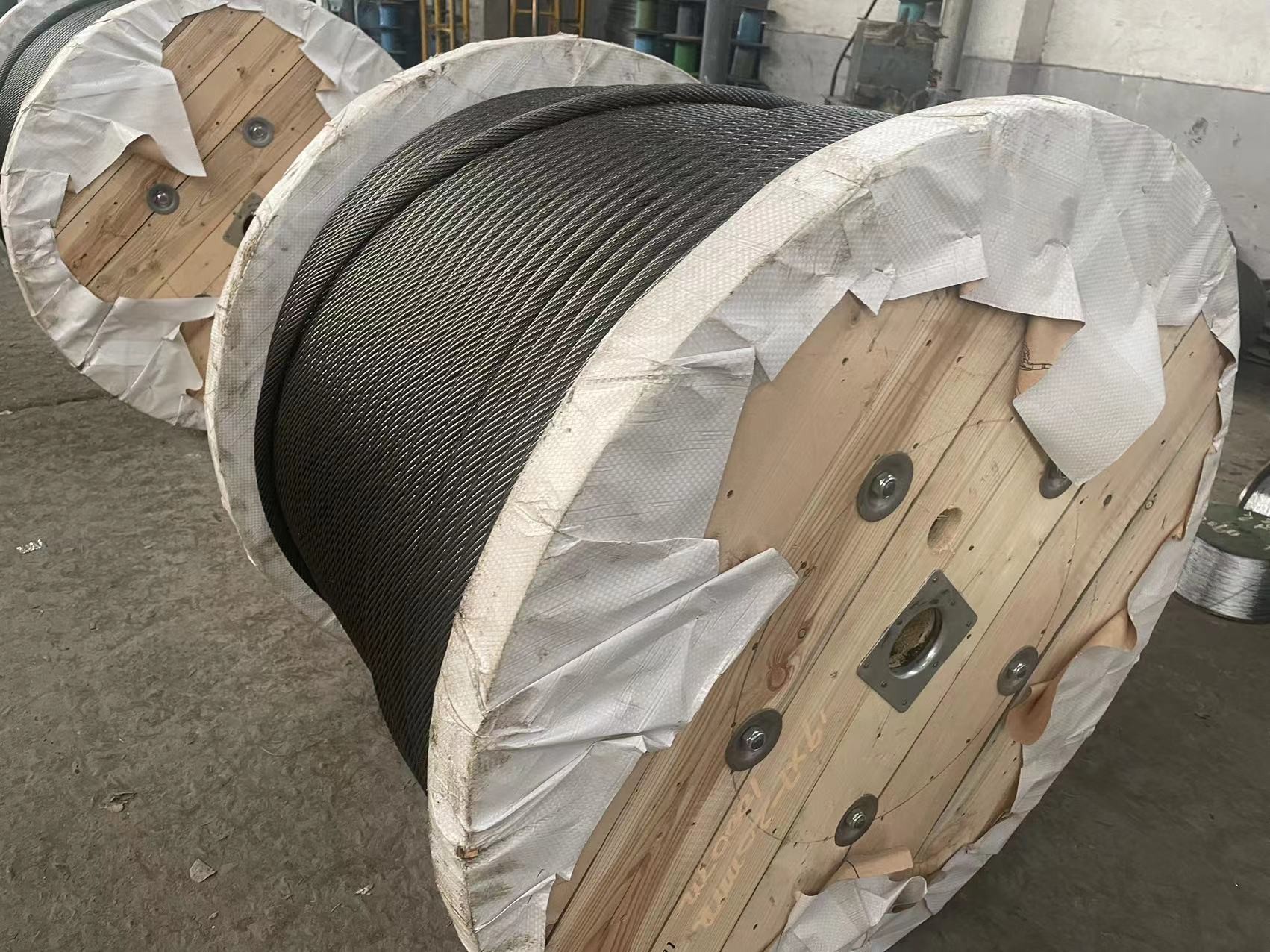

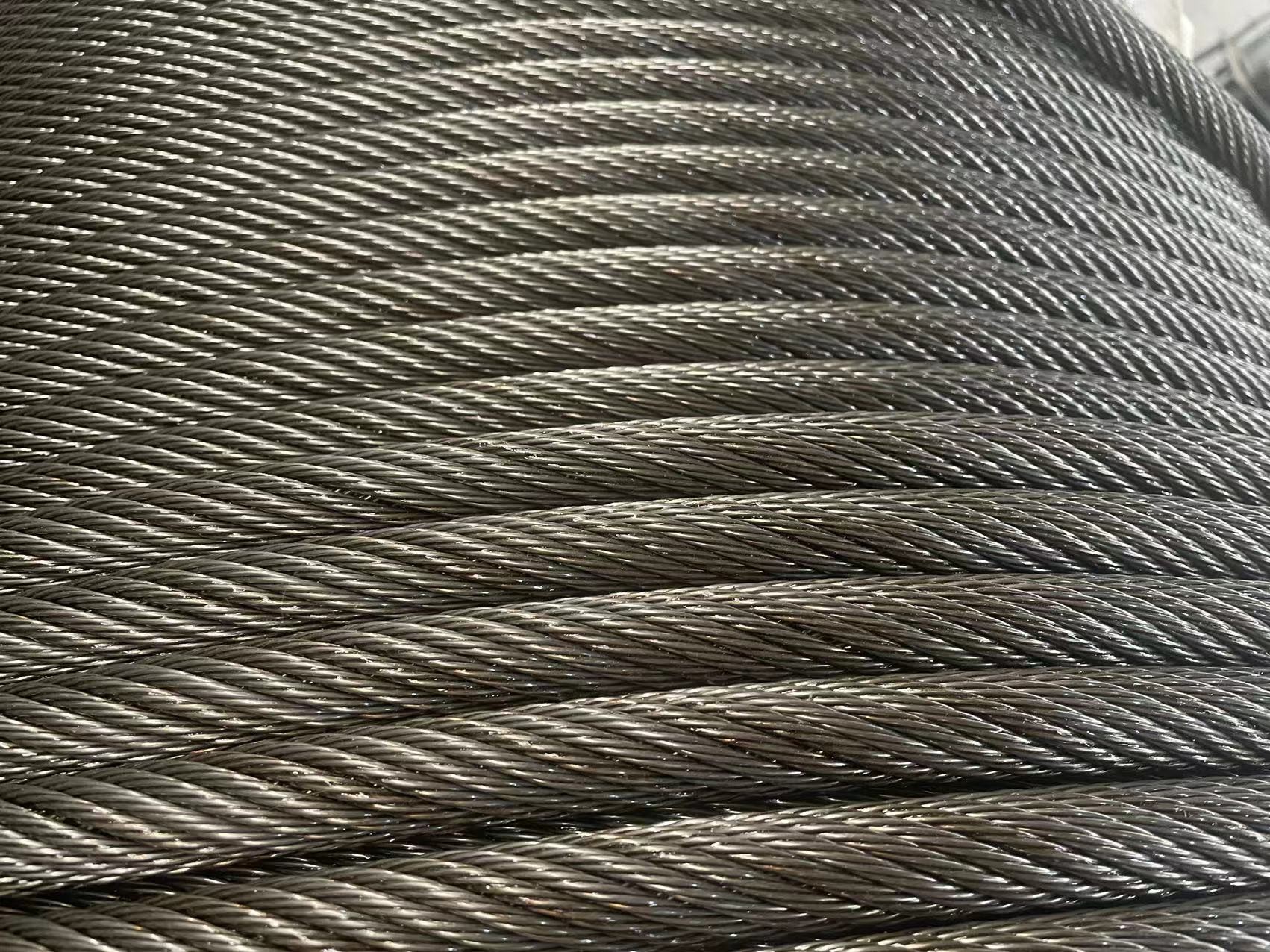

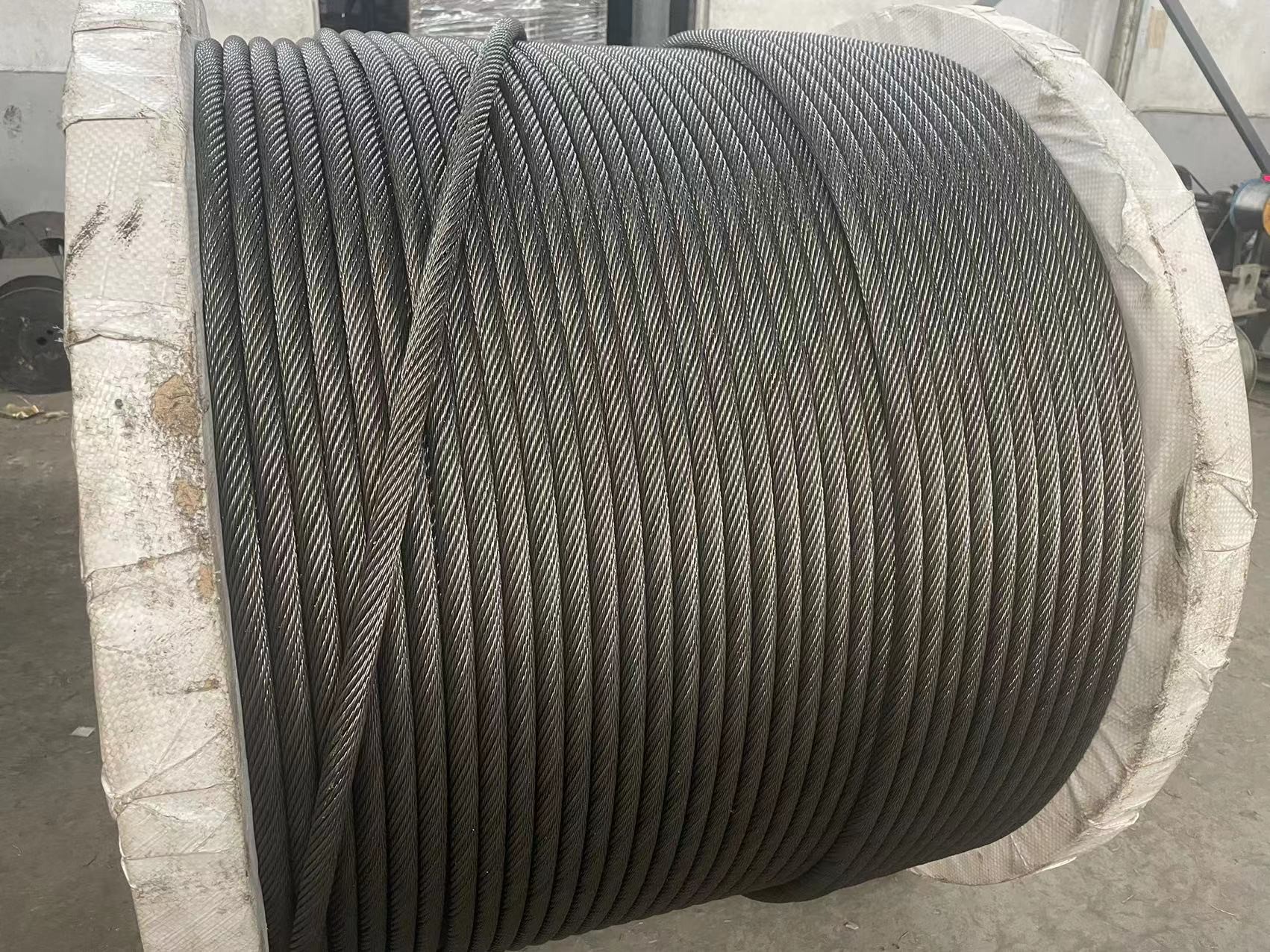

18X7 UNGALVANIZED STEEL WIRE ROPE

Approx.Weight

1470

1570

1670

1770

1870

d

Allowed
Tolerance

Minimum Breaking Load of Rope

mm

%

kg/100m

KN

4
5
6
7
8
9
10
11
12
13
14
16
18
20
22
24
26
28
30
32
34
36
38
40

十6

0

6.20
9.80
14.00
19.10
25.00
31.60
39.00
47.20
56.20
65.90
76.40
99.80
126.00
156.00
189.00
225.00
264.00
306.00
351.00
399.00
451.00
505.00
563.00
624.00

7.70
12.10
17.40
23.60
30.90
39.10
48.20
58.30
69.40
81.50
94.50
123.00
156.00
193.00
233.00
278.00
326.00
378.00
434.00
494.00
557.00
625.00
696.00
771.00

8.20
12.90
18.50
25.20
33.00
41.70
51.50
62.30
74.20
87.00
100.00
132.00
167.00
206.00
249.00
297.00
348.00
404.00
463.00
527.00
595.00
667.00
744.00
824.00

8.80
13.70
19.70
26.80
35.10
44.40
54.80
66.30
78.90
92.60
107.00
140.00
177.00
219.00
265.00
316.00
370.00
429.00
493.00
561.00
633.00
710.00
791.00
876.00

9.30
14.50
20.90
28.40
37.20
47.00
58.10
70.20
83.60
98.10
114.00
149.00
188.00
232.00
281.00
334.00
392.00
455.00
523.00
594.00
671.00
752.00
838.00
929.00

9.80
15.30
22.10
30.10
39.30
49.70
61.30
74.20
88.30
104.00
120.00
157.00
199.00
245.00
297.00
353.00
415.00
481.00
552.00
628.00
709.00
795.00
886.00
981.00
