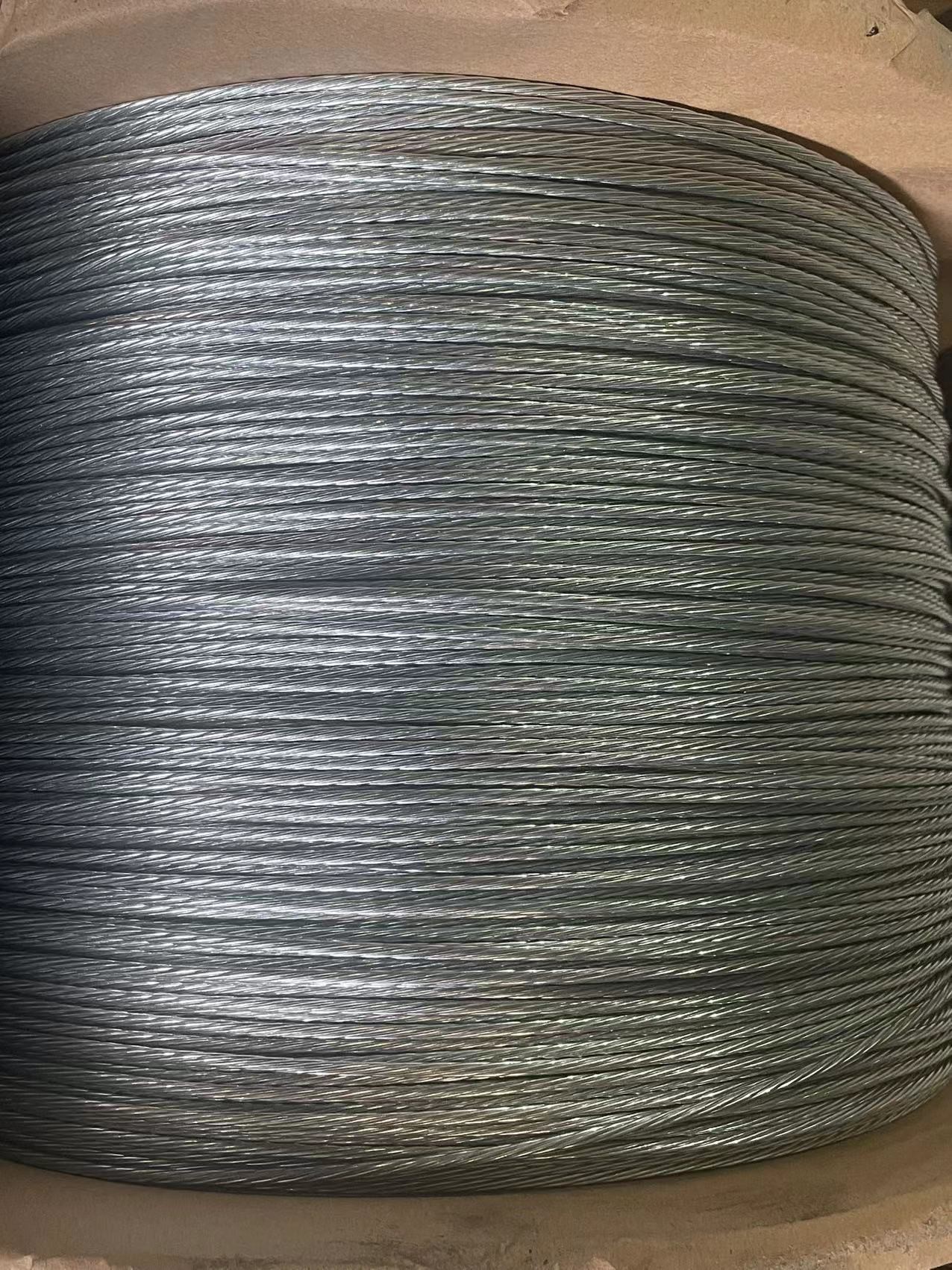

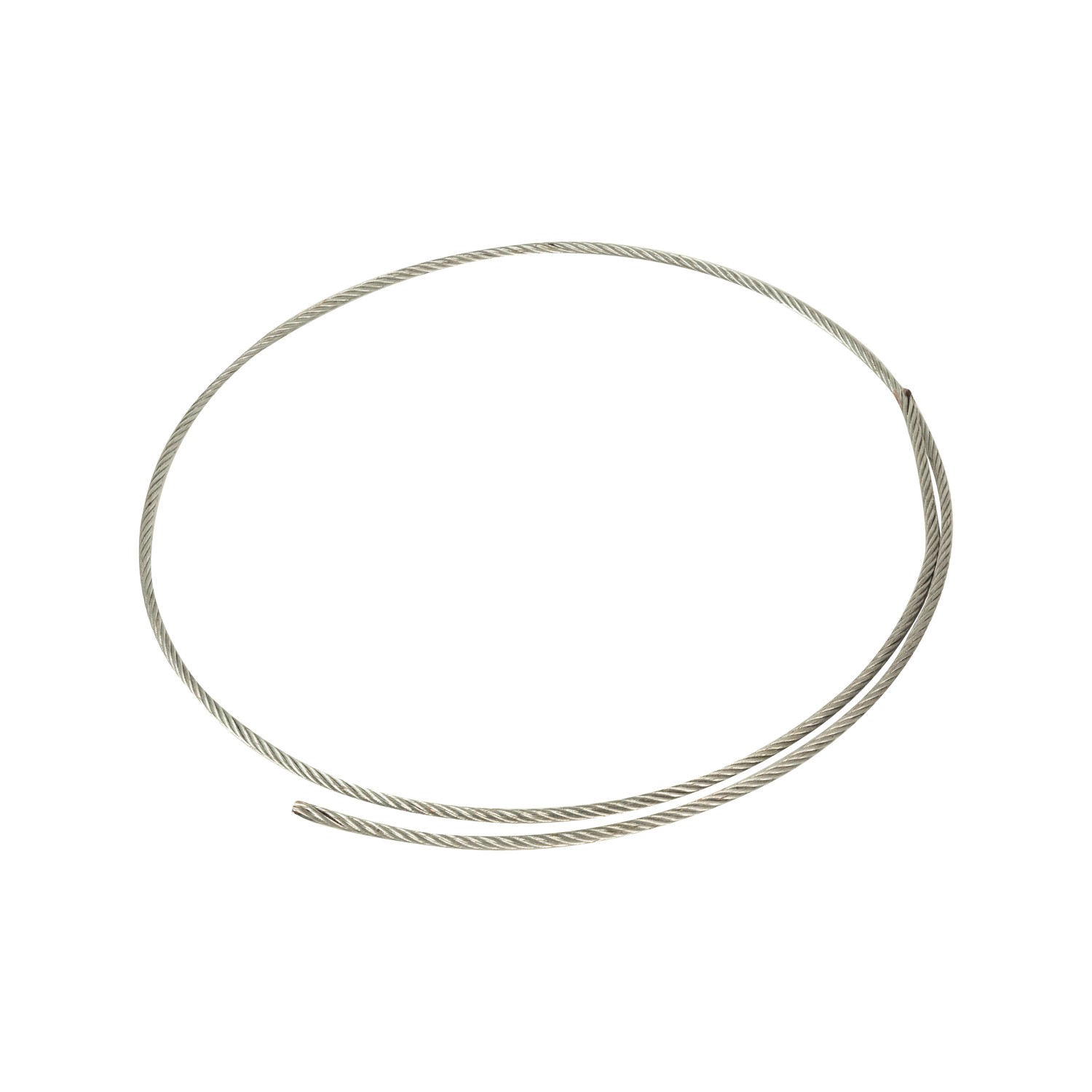

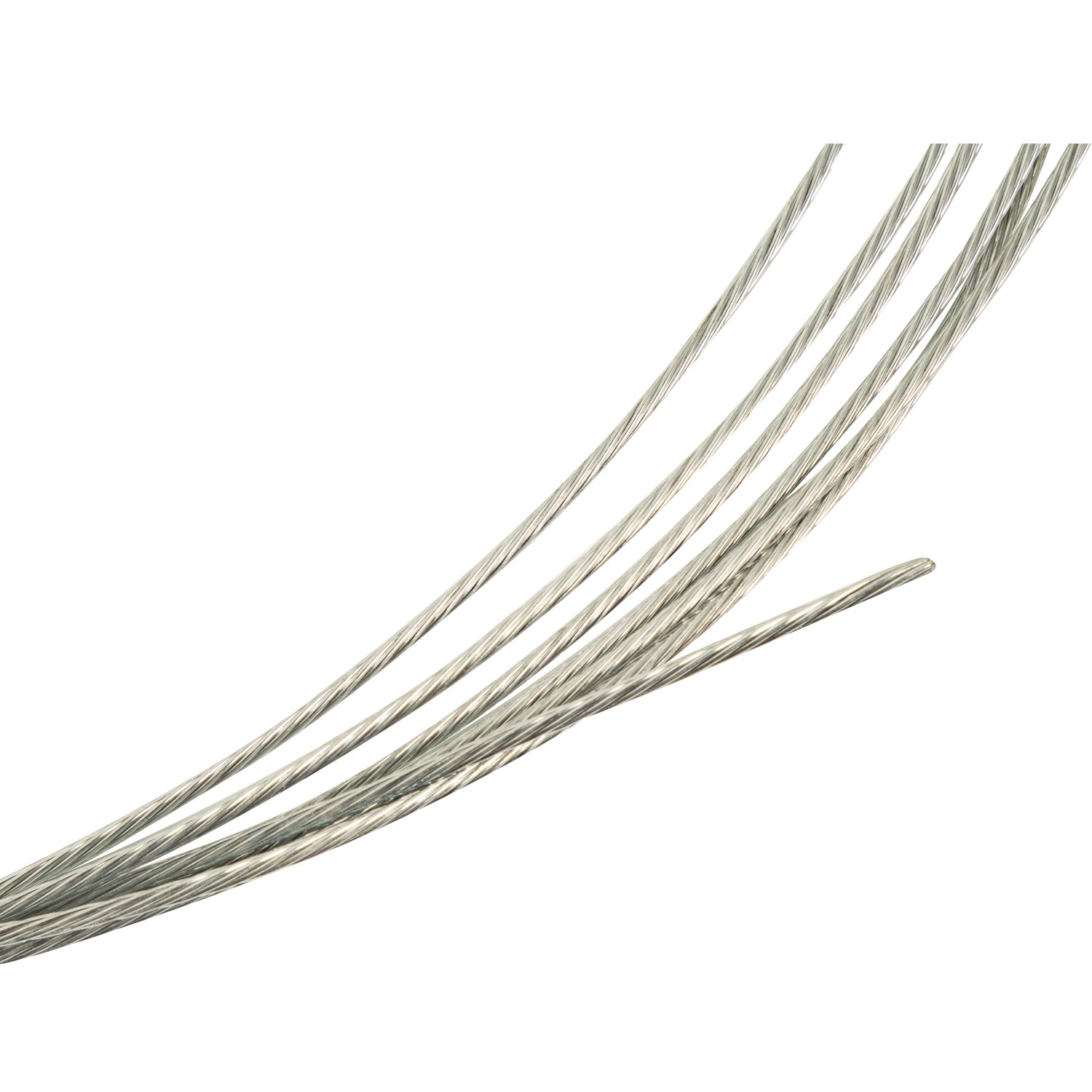

1X7 3/16 ZINC COATED STEEL WIRE STRAND

Surface:Hot dipped
Tensile Strength :1770MPA
Trademark:Julong
HS CODE:7312100000

Specification
ASTM A475, ASTM A363, BS183:1972

Galvanized Steel Wire Stand ASTM-A475

Number of Wires/Dia.	Approx.Strand Dia.		Siemem Martin Grade	High Strength Grade	Extra-high Strength Grade	Approx.Weight

	Inch	mm	KN	KN	KN	kg/km
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.04	29.981	174
3/3.05	1/4	6.35	-	-	-	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.18	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	-	-	-	118
7/1.83	3/16	5.56	11.387	17.126	24.02	145
7/2.03	7/32	6.35	14.012	21.129	29.581	181
7/2.36	1/4	7.14	18.905	28.469	39.812	243
7/2.64	9/32	7.94	23.798	35.586	49.82	305
7/2.77	5/16	7.94	-	-	-	335
7/3.05	3/8	9.52	30.915	48.04	68.503	407

COMPANY PRODUCTS:

1	Raw materials	high carbon steel rod #60, #70, #72A, #80, #82A, #82B
2	Construction	1x7, 1x19,1X12, 7x7, 7x19,6x19+FC, 6X19+IWRC 6x37+FC,6X37+IWRC,67+FC,77,624+7FC,6X12+7FC,6X15+7FC 619+FC, 6X19+IWRC 6x37+FC, 6X37+IWRC 619S+FC, 6x19S+IWRC 619W+FC, 619W+IWRC 625FI+FC, 625FI+IWRC 6x36WS+FC, 636WS+IWRC 8x19S+FC,8X19S+IWRC 18x7+FC, 18x7+IWS, 19x7 ,35WX7.35WXK7. 6XK36WS,6XK25FI,18XK19 4X25Fi+PP, 4X26WS+PP, 4X31S+PP etc.
3	Surface	GALVANIZED ,UNGALVANIZED ,PVC /PE COATED
4	Diameter Range	2mm-50mm
5	Tensile Strength	1570mpa ,1670mpa ,1770mpa ,1860mpa ,1960mpa
6	Standard	AISI,,DIN.JIS,ASTM,GB,BS etc
7	Packing	wooden reel ,coil packing ,plastic reel
8	MOQ:	2 TONS
9	Delivery time	25 days after receive deposit or LC
10	Terms Payment	T/T ,LC AT SIGHT
